MODEL
|
SIZE |
VOLTAGE（V） |
CURRENT（A） |
SPEED（RPM） |
AIR FLOW（CFM） |
PRESSURE（mmH2O) |
NOISE(dBA) |
WEIGHT(g) |

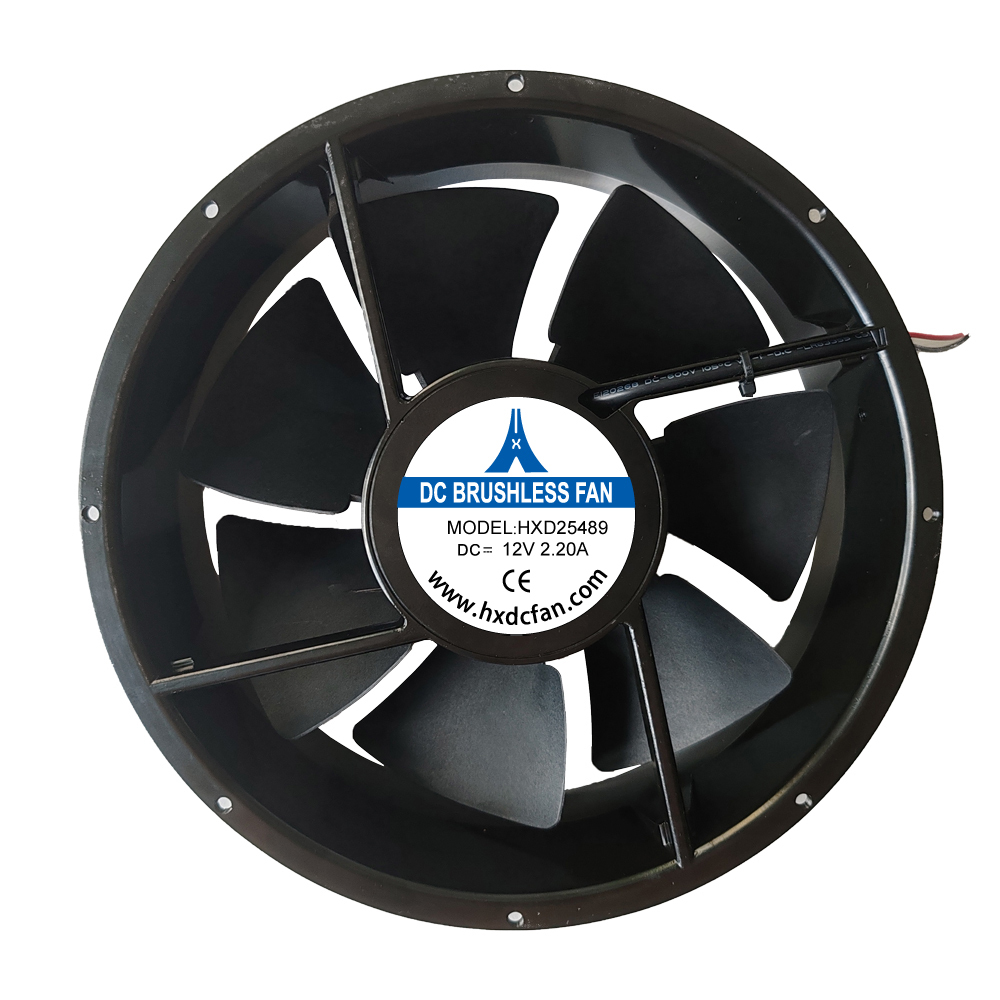

| HXD25498 |
254X89mm |
12(7~14） |
2.20 |
1800 |
626.26 |
12.65 |
57 |
1700 |
| 24（15~27） |
1.10 |
1800 |
626.26 |
12.65 |
57 |
| 1.50 |
2200 |
758.11 |
18.54 |
61.2 |
| 2.66 |
2600 |
899.96 |
25.55 |
65.8 |
| 4.25 |
3000 |
1021.81 |
33.69 |
69.0 |
| 48(35~57) |
0.55 |
1800 |
626.26 |
12.65 |
57.0 |
| 0.75 |
2200 |
758.11 |
18.54 |
61.2 |
| 1.33 |
2600 |
899.96 |
25.55 |
65.8 |
| 2.15 |
3000 |
1021.81 |
33.69 |
69.0 |
| 2.35 |
3200 |
1088.73 |
38.26 |
70.6 |
Expected Life:
Ball Bearing 70,000hrs (40°C)
Sleeve Bearing 30,000hrs (40°C)
Temperature Range:
Operating temperature -10'C-70°C (Non-condensing)
Storage temperature -40°C-75°C(Non-condensing)
Safety Standards:RoHS, CE,FCC
Bearing type：
1.Sleeve bearing(lower price):The sleeve was stalbe performance and easy installation Lifetime: 30,000h
2.Ball bearing(high price):it is charactered with high quality,low noise level and easy installation. Lifetime: 50,000h
Wire：
1.Auto-restart function
2.Stopage Alarm function(RD function with 3 lead wires)
3.Speed detection function( FG function with 3 lead wires)
4.Temperature control speed function(PWM function with 4 lead wires)
5. RD, FG, PWM(5 lead wires)
