MODEL
|
SIZE |
VOLTAGE（V） |
CURRENT（A） |
SPEED（RPM） |
AIR FLOW（CFM） |
PRESSURE（mmH2O) |
NOISE(dBA) |
WEIGHT(g) |

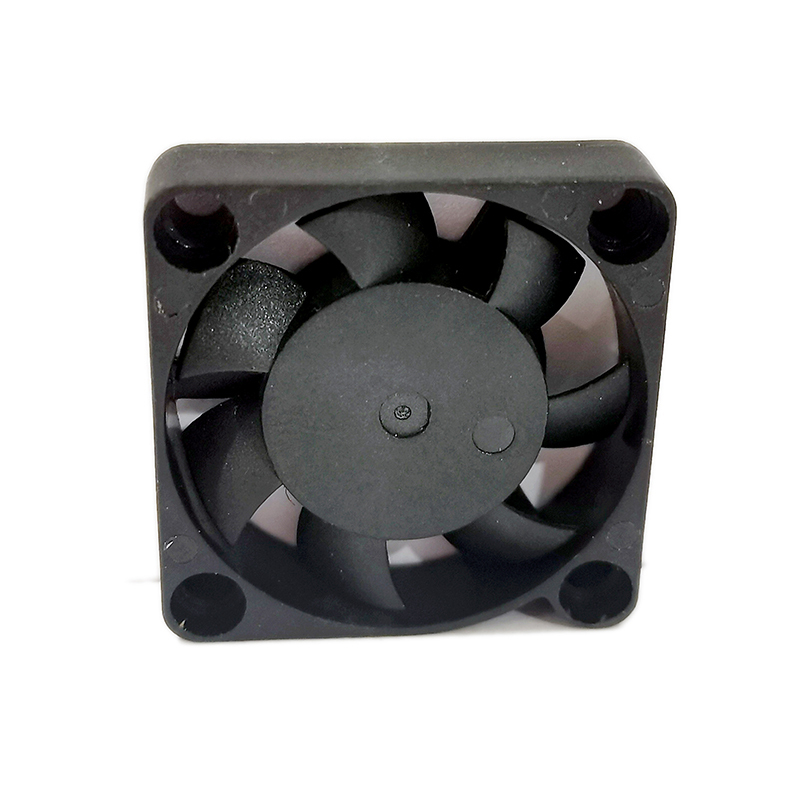

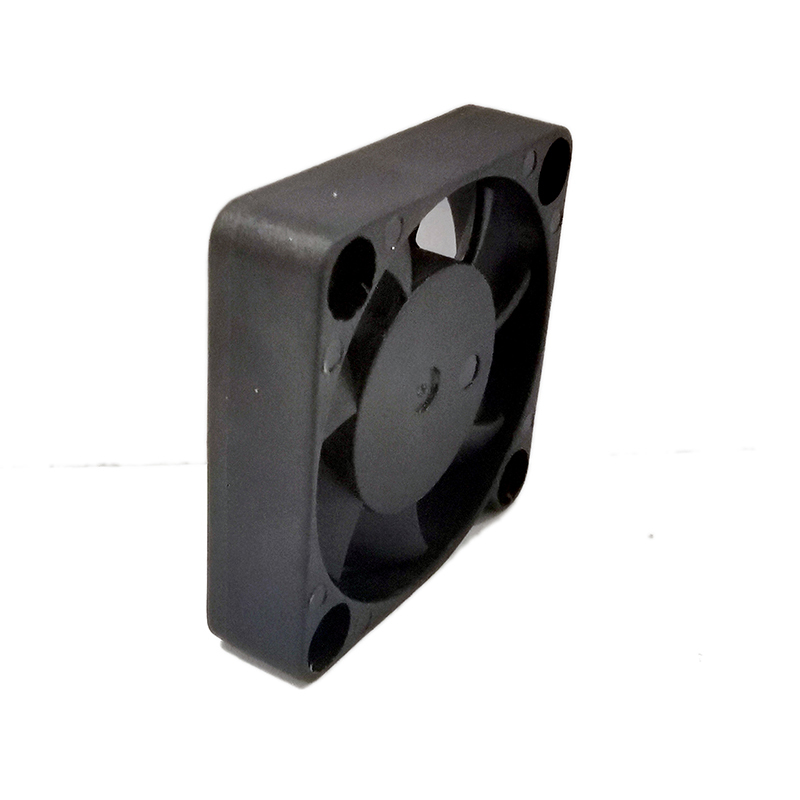

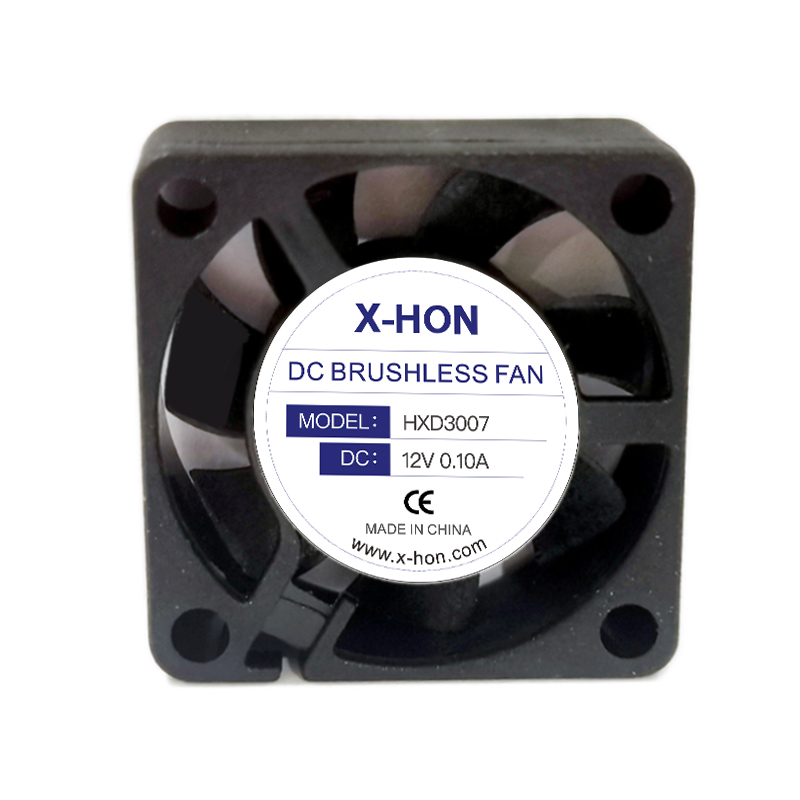

| HXD3007 |

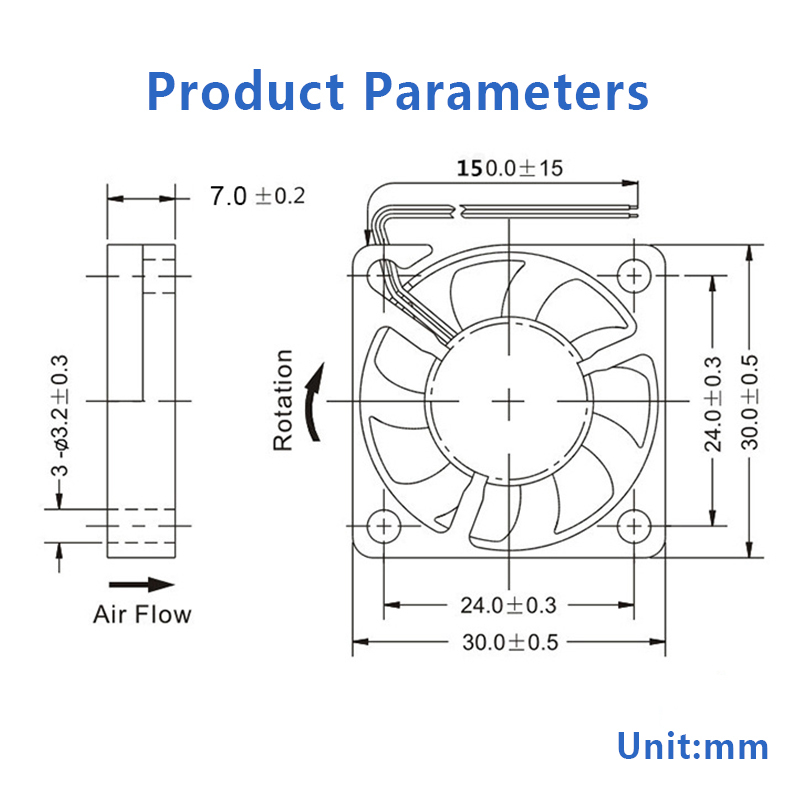

30X30X7 |
3 |
0.23 |
7000 |
2.5 |
3.3 |
24.0 |
7 |
| 0.32 |
10000 |
3.6 |
5.8 |
32.0 |
| 0.40 |
13000 |
4.6 |
8.1 |
40.0 |
| 5 |
0.13 |
7000 |
2.5 |
3.3 |
24.0 |
| 0.23 |
10000 |
3.6 |
5.8 |
32.0 |
| 0.30 |
13000 |
4.6 |
8.1 |
40.0 |
| 12 |
0.09 |
7000 |
2.5 |
3.3 |
24.0 |
| 0.13 |
10000 |
3.6 |
5.8 |
32.0 |
| 0.18 |
13000 |
4.6 |
8.1 |
40.0 |
Expected Life:
Ball Bearing 70,000hrs (40°C)
Sleeve Bearing 30,000hrs (40°C)
Temperature Range:
Operating temperature -10'C-70°C (Non-condensing)
Storage temperature -40°C-75°C(Non-condensing)
Safety Standards:RoHS, CE,FCC
Bearing type：
1.Sleeve bearing(lower price):The sleeve was stalbe performance and easy installation Lifetime: 30,000h
2.Ball bearing(high price):it is charactered with high quality,low noise level and easy installation. Lifetime: 50,000h
Wire：
1.Auto-restart function
2.Stopage Alarm function(RD function with 3 lead wires)
3.Speed detection function( FG function with 3 lead wires)
4.Temperature control speed function(PWM function with 4 lead wires)
5. RD, FG, PWM(5 lead wires)
