MODEL
|
SIZE |
VOLTAGE（V） |
CURRENT（A） |
SPEED（RPM） |
AIR FLOW（CFM） |

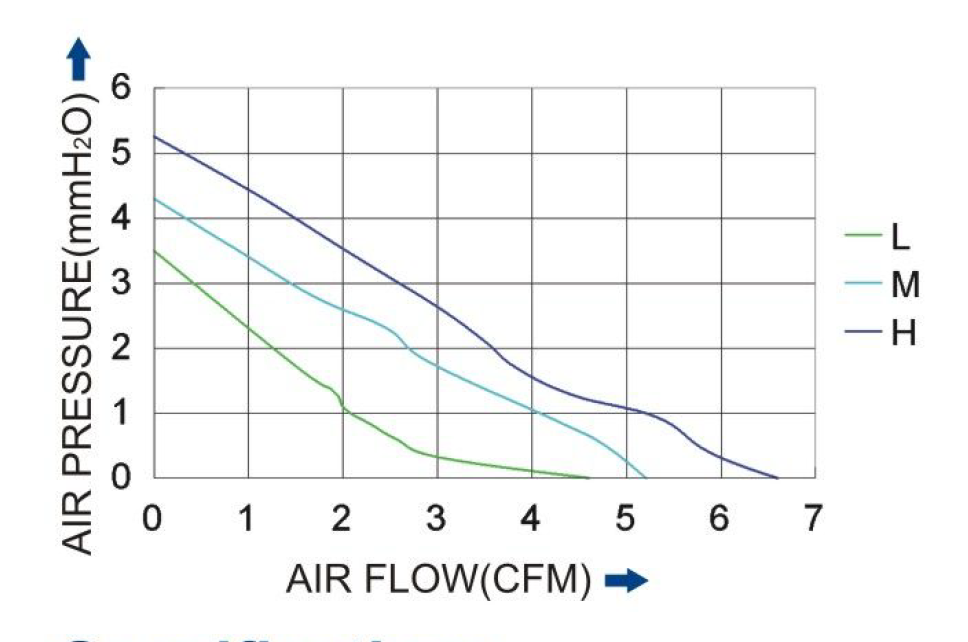

PRESSURE（mmH2O) |
NOISE(dBA) |
WEIGHT(g) |

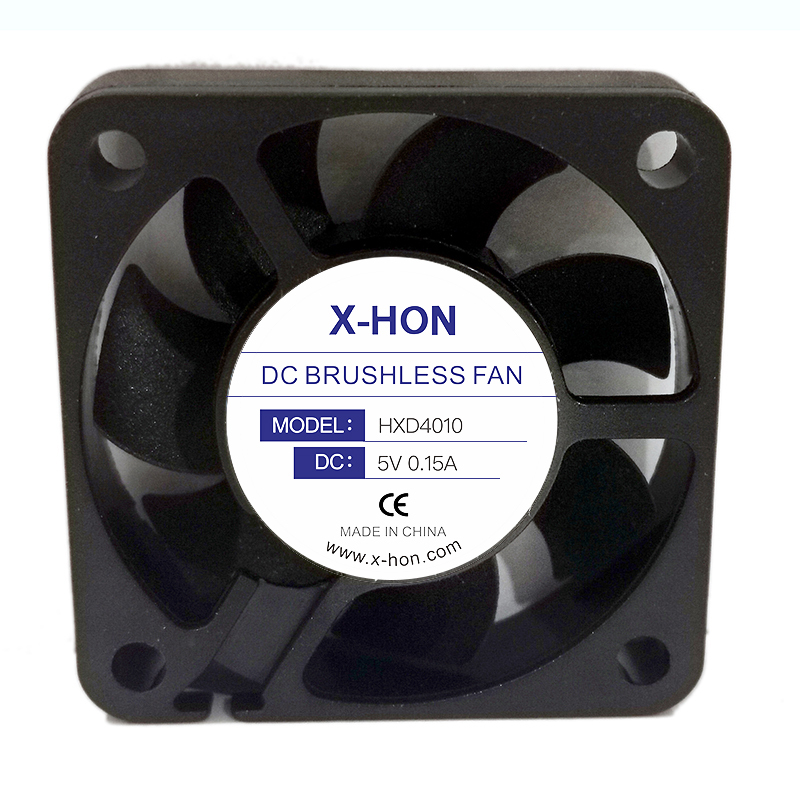

| HXD4010 |

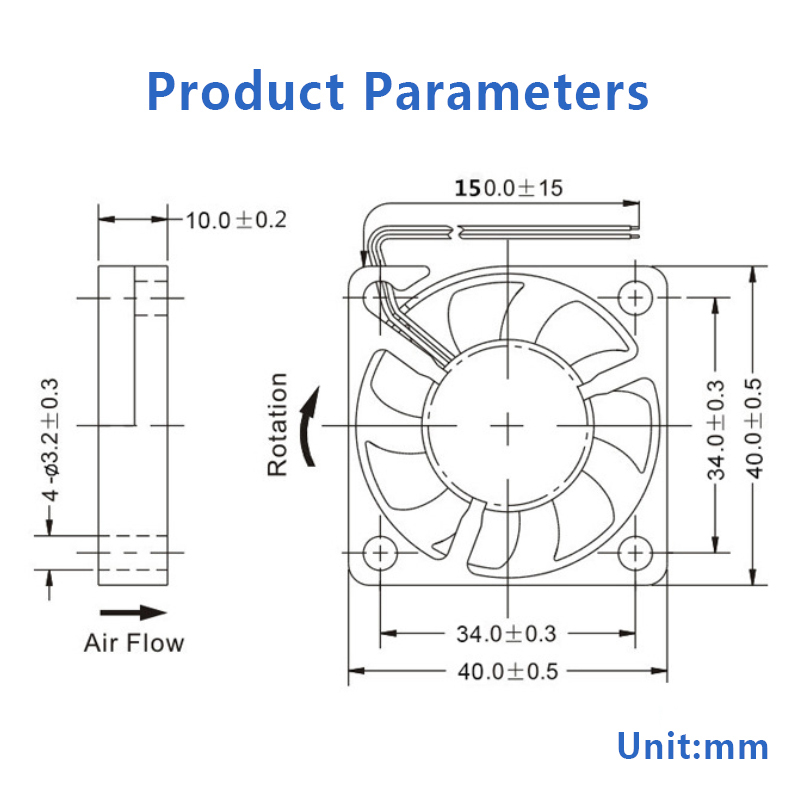

40X40X10 |
5 |
0.18 |
5000 |
4.6 |
3.5 |
24.7 |
16 |
| 0.25 |
6000 |
5.2 |
4.3 |
29.0 |
| 0.35 |
7000 |
6.9 |
5.5 |
34.5 |
| 12 |
0.09 |
5000 |
4.6 |
3.5 |
24.7 |
| 0.13 |
6000 |
5.2 |
4.3 |
29.0 |
| 0.18 |
7000 |
6.9 |
5.5 |
34.5 |
| 24 |
0.04 |
5000 |
4.6 |
3.5 |
24.7 |
| 0.06 |
6000 |
5.2 |
4.3 |
29.0 |
| 0.09 |
7000 |
6.9 |
5.5 |
34.5 |
Expected Life:
Ball Bearing 70,000hrs (40°C)
Sleeve Bearing 30,000hrs (40°C)
Temperature Range:
Operating temperature -10'C-70°C (Non-condensing)
Storage temperature -40°C-75°C(Non-condensing)
Safety Standards:RoHS, CE,FCC
Bearing type：
1.Sleeve bearing(lower price):The sleeve was stalbe performance and easy installation Lifetime: 30,000h
2.Ball bearing(high price):it is charactered with high quality,low noise level and easy installation. Lifetime: 50,000h
Wire：
1.Auto-restart function
2.Stopage Alarm function(RD function with 3 lead wires)
3.Speed detection function( FG function with 3 lead wires)
4.Temperature control speed function(PWM function with 4 lead wires)
5. RD, FG, PWM(5 lead wires)
