MODEL
|
SIZE |
VOLTAGE（V） |
CURRENT（A） |
SPEED（RPM） |

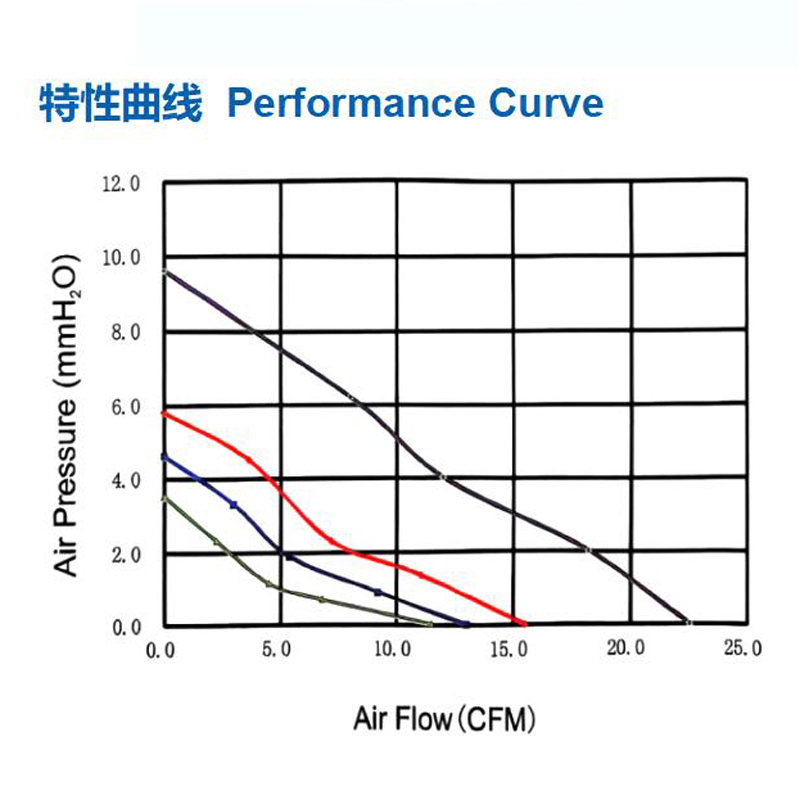

AIR FLOW（CFM） |
PRESSURE（mmH2O) |
NOISE(dBA) |
WEIGHT(g) |

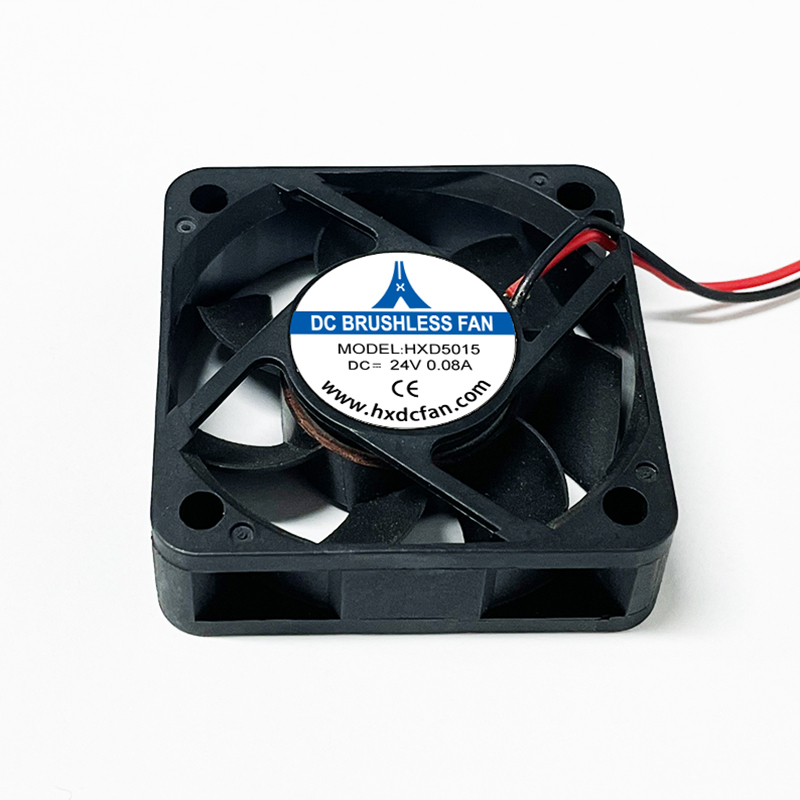

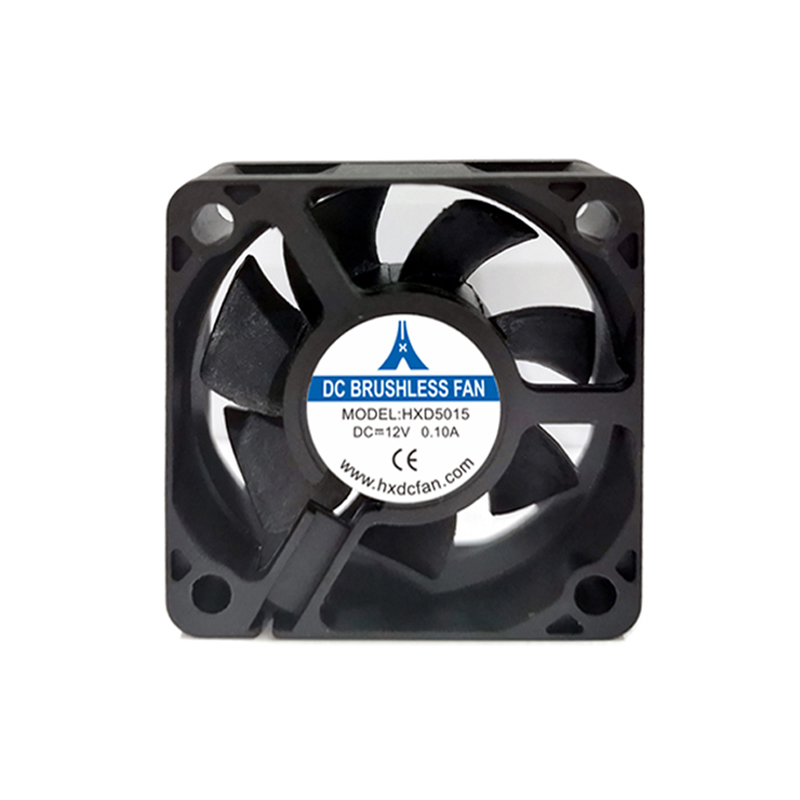

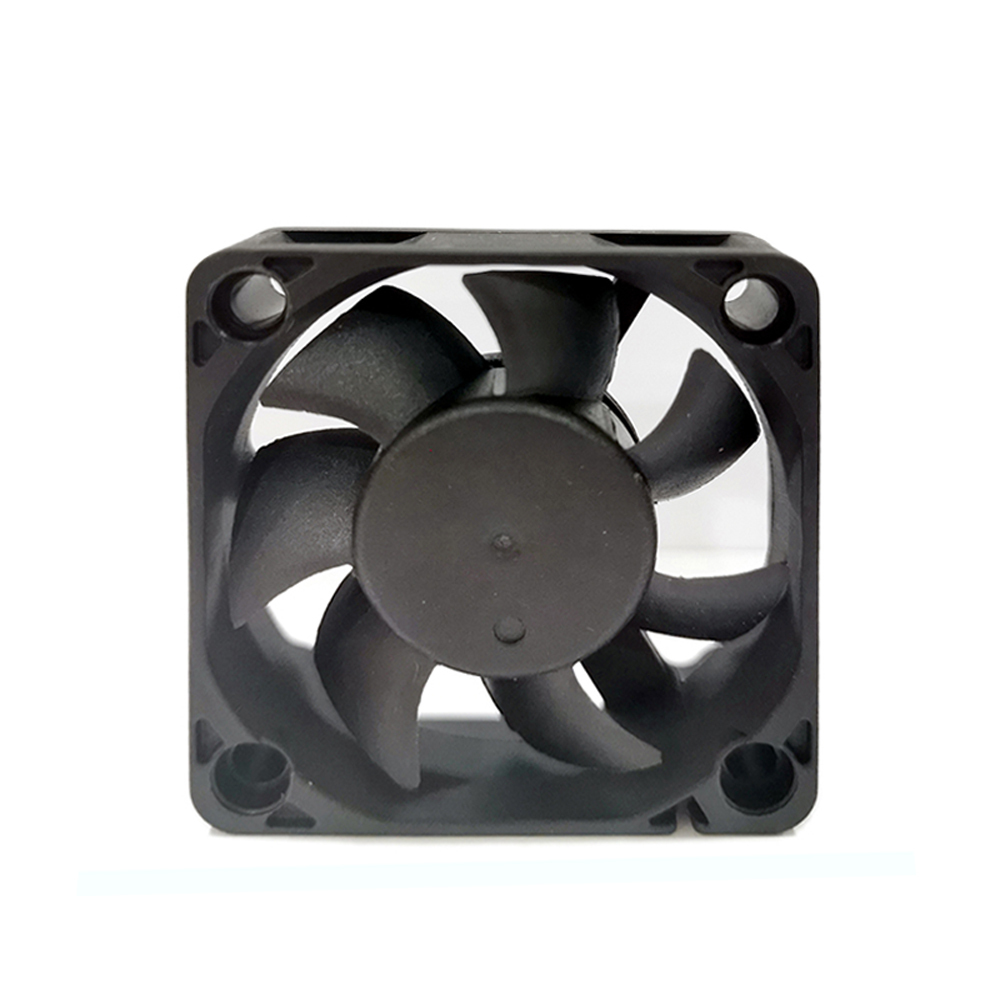

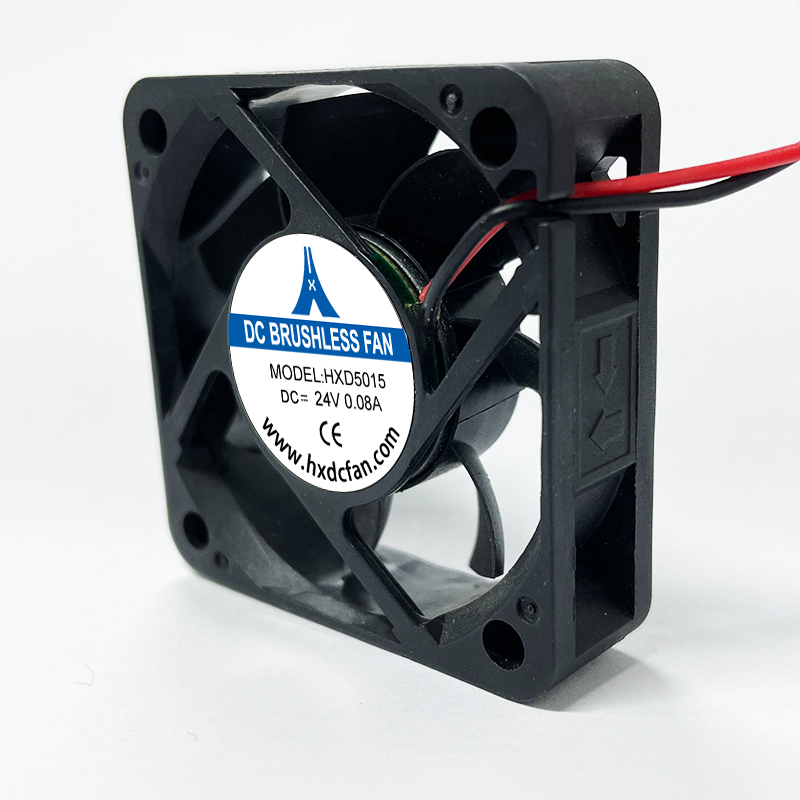

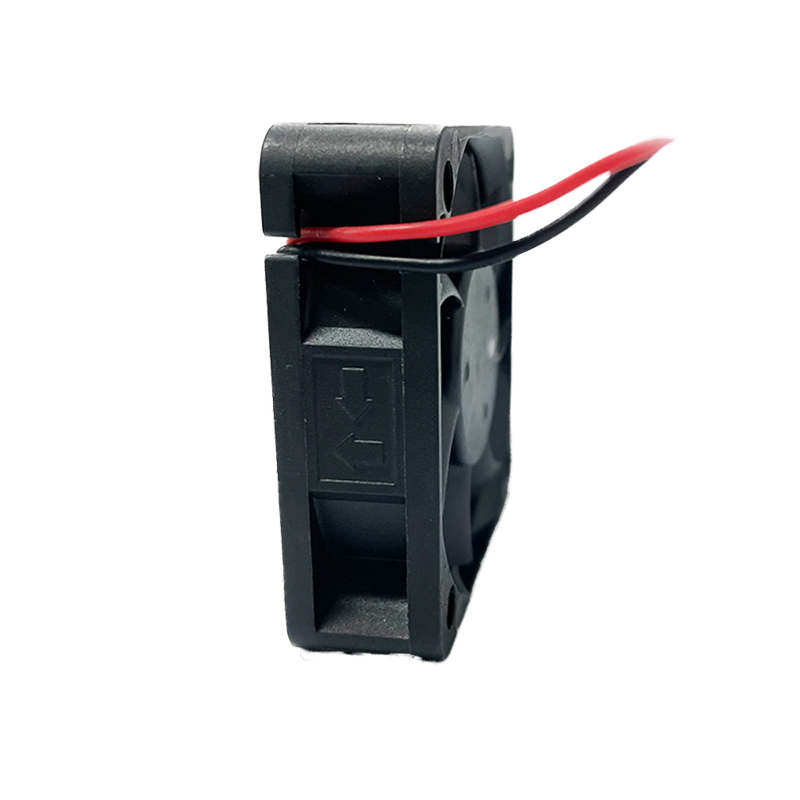

| HXD5015 |
50X50X15 |
5 |
0.33 |
5500 |
15.5 |
5.8 |
31 |
28 |
| 0.25 |
5000 |
13.0 |
4.6 |
30 |
| 0.20 |
4500 |
11.5 |
3.5 |
29 |
| 12 |
0.40 |
8000 |
22.5 |
9.6 |
41 |
| 0.30 |
5500 |
15.5 |
5.8 |
31 |
| 0.22 |
5000 |
13.0 |
4.6 |
30 |
| 0.13 |
4500 |
11.5 |
3.5 |
29 |
| 24 |
0.18 |
8000 |
22.5 |
9.6 |
41 |
| 0.15 |
5500 |
15.5 |
5.8 |
31 |
| 0.10 |
5000 |
13.0 |
4.6 |
30 |
| 0.08 |
4500 |
11.5 |
3.5 |
29 |
|
Expected Life:
Ball Bearing 70,000hrs (40°C)
Sleeve Bearing 30,000hrs (40°C)
Temperature Range:
Operating temperature -10'C-70°C (Non-condensing)
Storage temperature -40°C-75°C(Non-condensing)
Safety Standards:RoHS, CE,FCC
Bearing type：
1.Sleeve bearing(lower price):The sleeve was stalbe performance and easy installation Lifetime: 30,000h
2.Ball bearing(high price):it is charactered with high quality,low noise level and easy installation. Lifetime: 50,000h
Wire：
1.Auto-restart function
2.Stopage Alarm function(RD function with 3 lead wires)
3.Speed detection function( FG function with 3 lead wires)
4.Temperature control speed function(PWM function with 4 lead wires)
5. RD, FG, PWM(5 lead wires)
