MODEL
|
SIZE |
VOLTAGE（V） |
CURRENT（A） |
SPEED（RPM） |

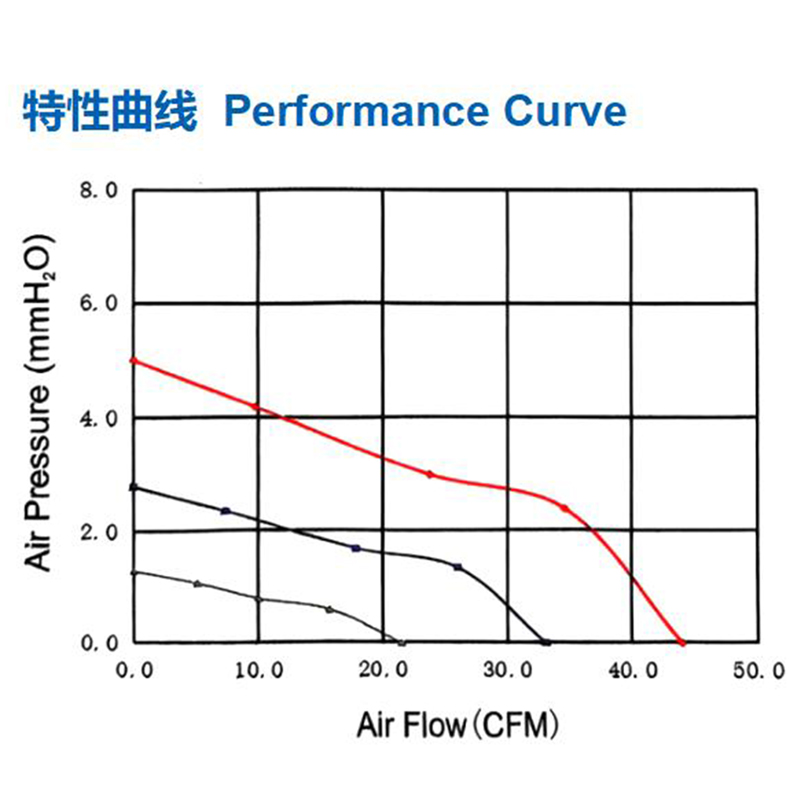

AIR FLOW（CFM） |
PRESSURE（mmH2O) |
NOISE(dBA) |
WEIGHT(g) |

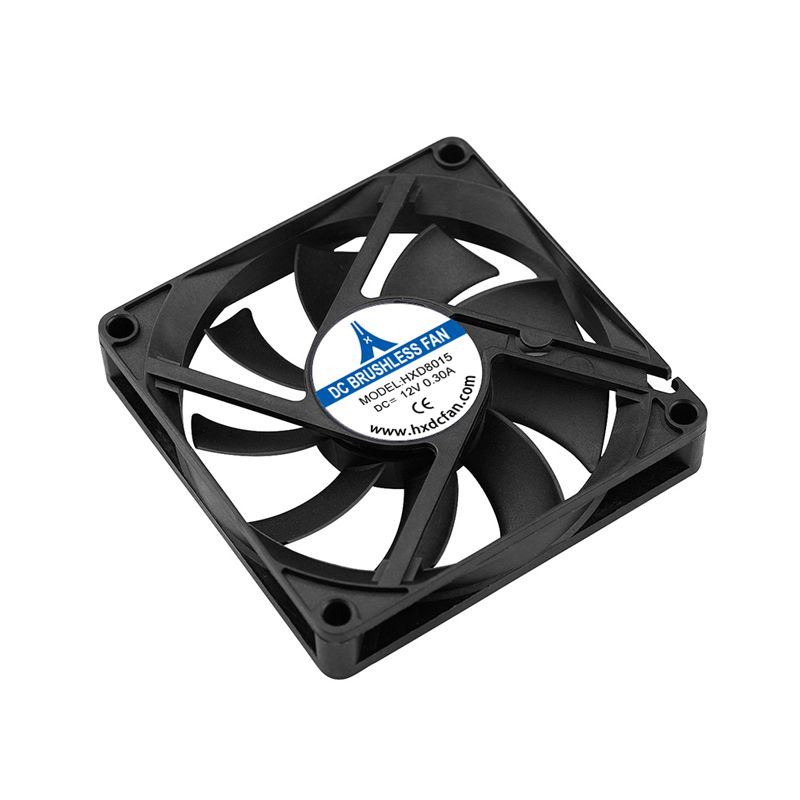

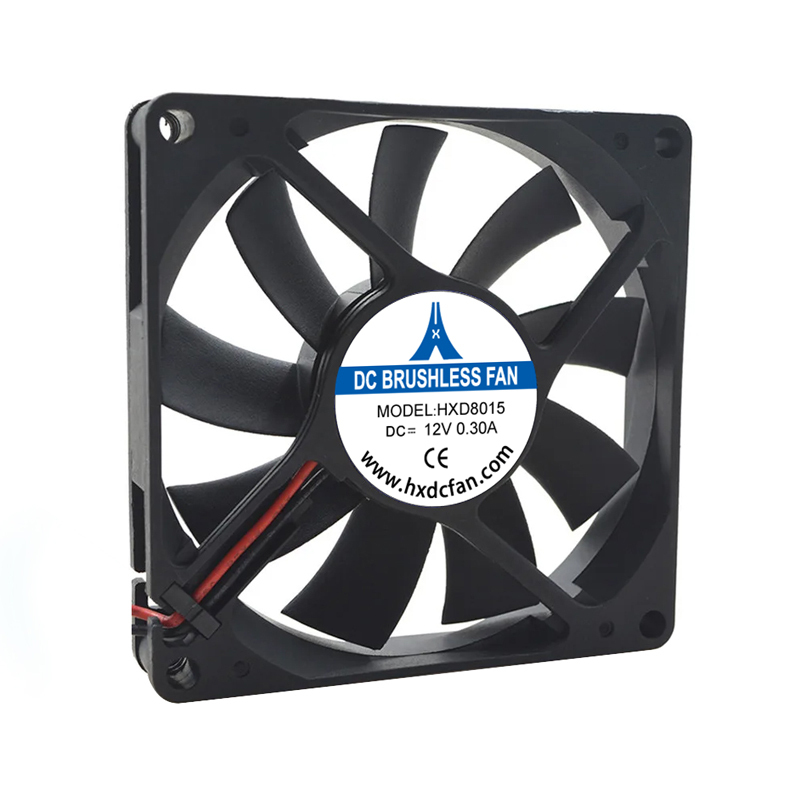

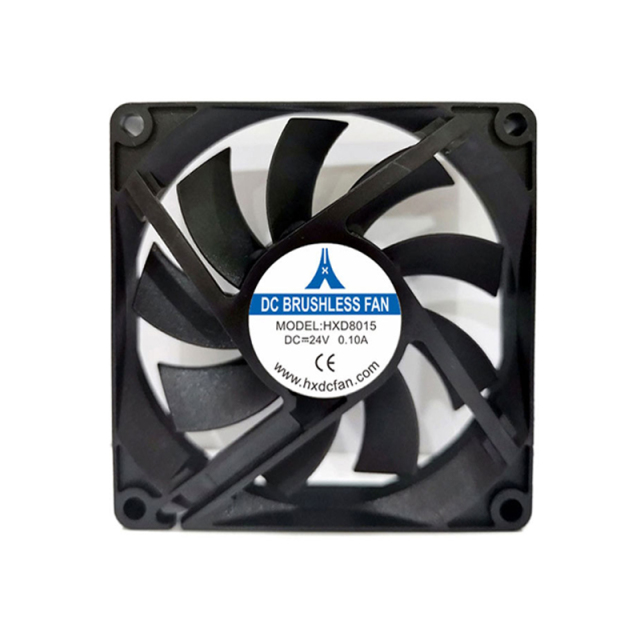

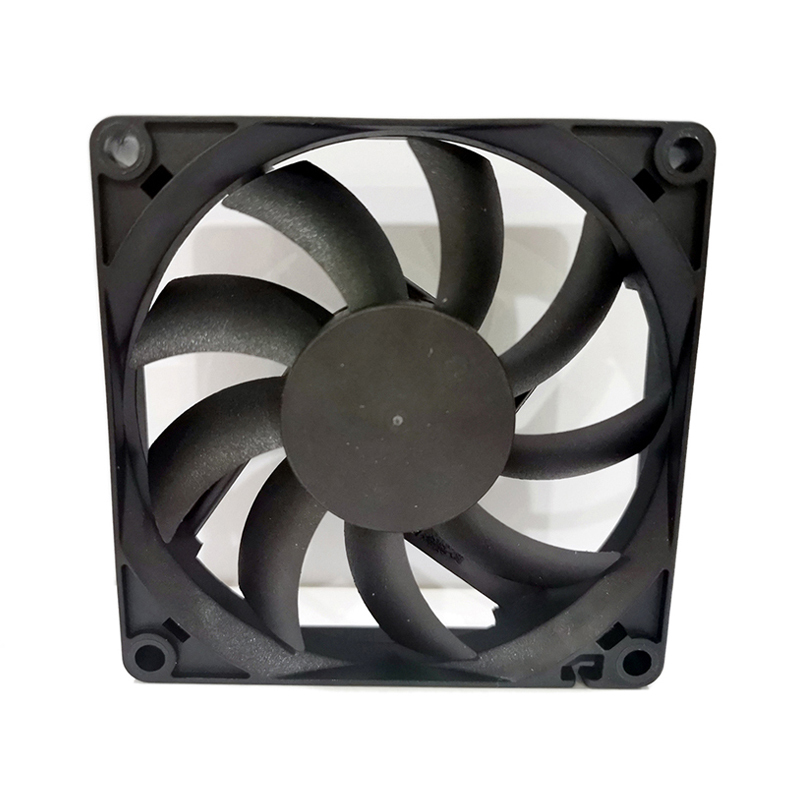

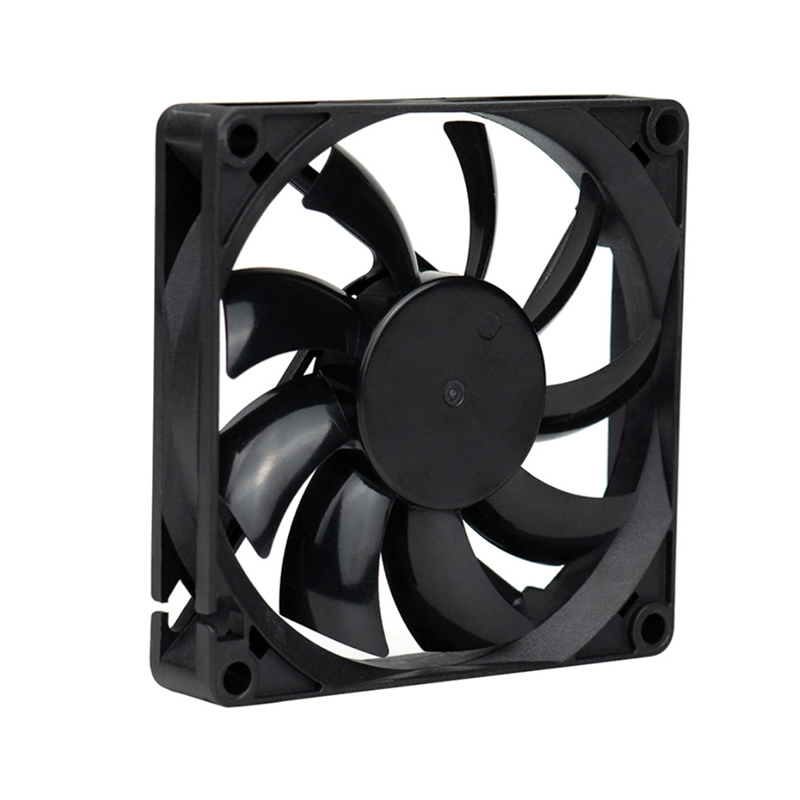

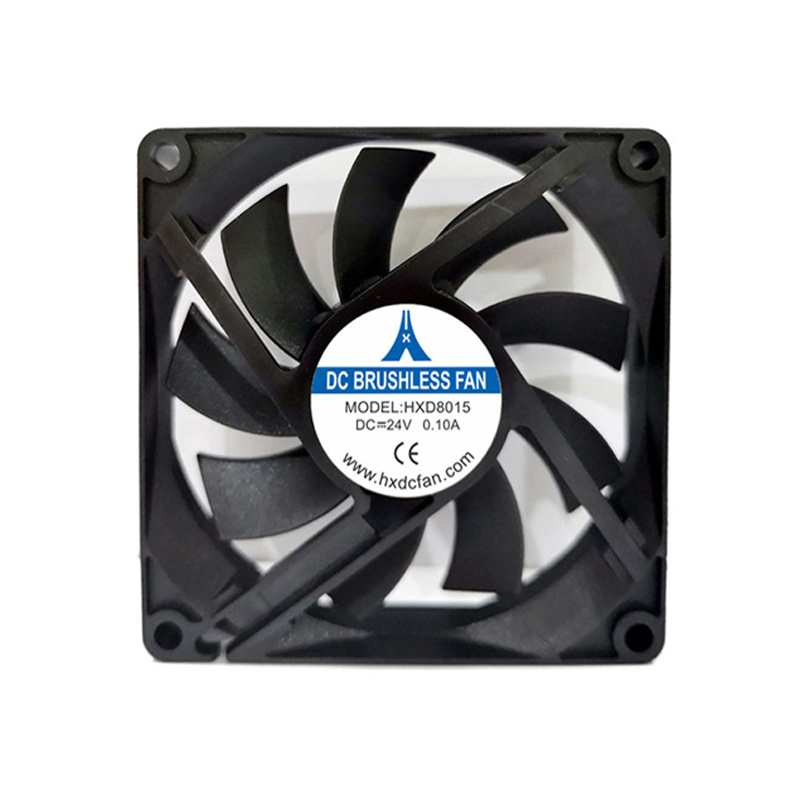

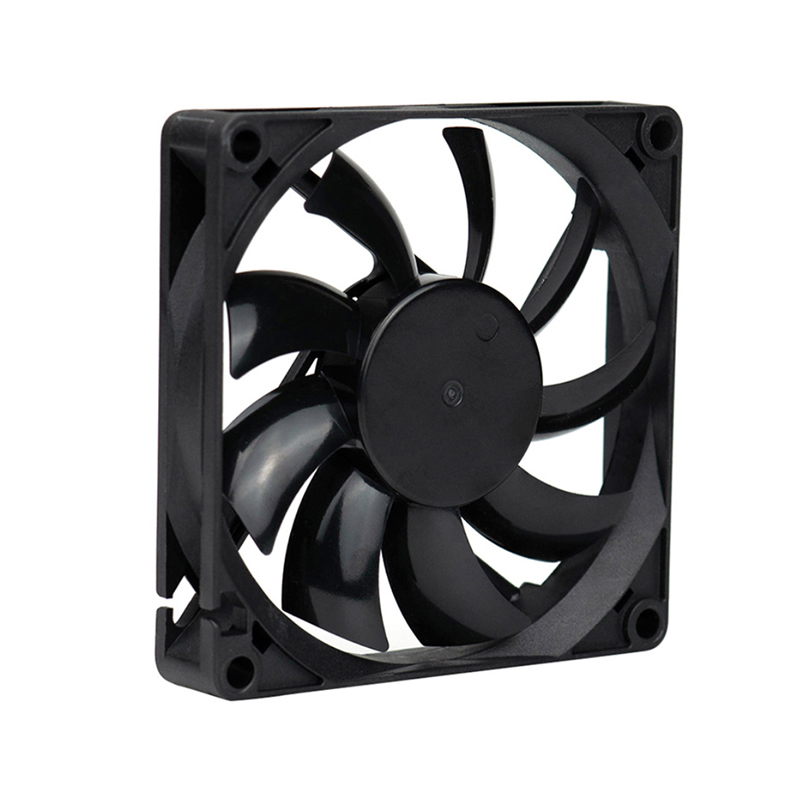

| HXD8015 |
80X80X15 |
12 |
0.40 |
4000 |
44.0 |
5.0 |
42 |
54 |
| 0.20 |
3000 |
33.1 |
2.8 |
30 |
| 0.12 |
2000 |
21.5 |
1.3 |
24 |
| 24 |
0.20 |
4000 |
44.0 |
5.0 |
42 |
| 0.15 |
3000 |
33.1 |
2.8 |
30 |
| 0.06 |
2000 |
21.5 |
1.3 |
24 |
Expected Life:
Ball Bearing 70,000hrs (40°C)
Sleeve Bearing 30,000hrs (40°C)
Temperature Range:
Operating temperature -10'C-70°C (Non-condensing)
Storage temperature -40°C-75°C(Non-condensing)
Safety Standards:RoHS, CE,FCC
Bearing type：
1.Sleeve bearing(lower price):The sleeve was stalbe performance and easy installation Lifetime: 30,000h
2.Ball bearing(high price):it is charactered with high quality,low noise level and easy installation. Lifetime: 50,000h
Wire：
1.Auto-restart function
2.Stopage Alarm function(RD function with 3 lead wires)
3.Speed detection function( FG function with 3 lead wires)
4.Temperature control speed function(PWM function with 4 lead wires)
5. RD, FG, PWM(5 lead wires)
